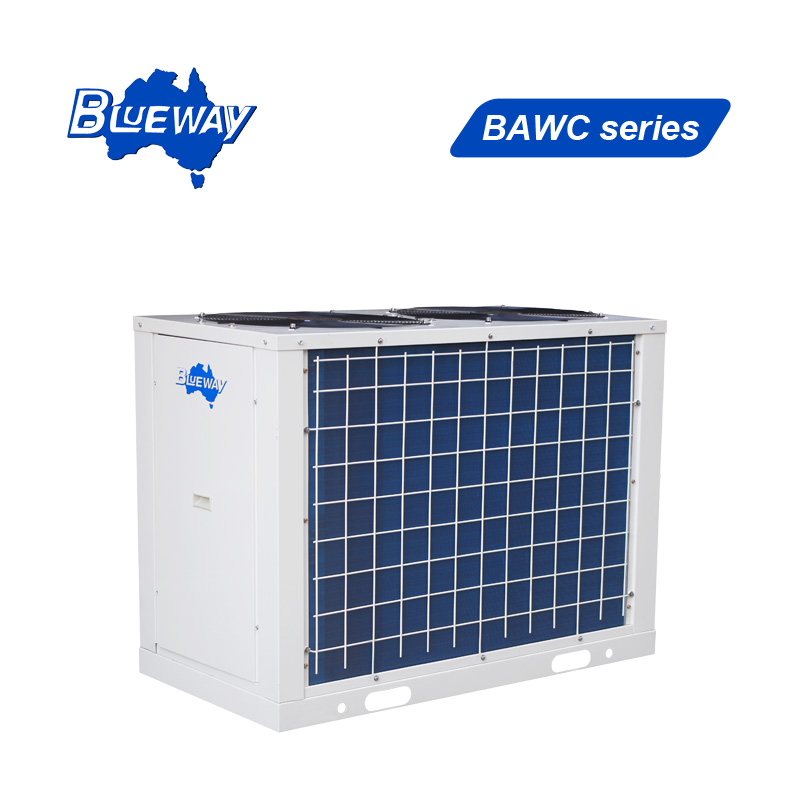

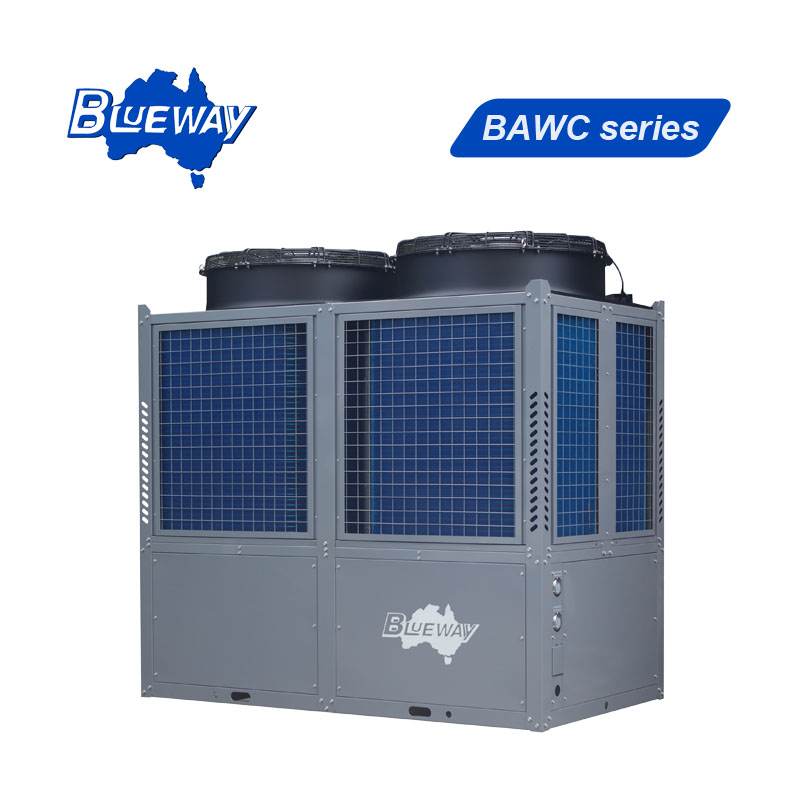

Air Cooled Water Chiller

Blueway innovative Air Cooled Water Chiller solutions are designed to bring superior efficient, simple operation, safe reliable cooling to all types of residential & commercial applications. Especially for the tropical design for working climate temperature up to 53℃, equipped with R410a refrigerant and RS485 interface. Optional built-in water pump & WIFI control function.

Send Inquiry

China Wholesale Air Cooled Water Chiller Manufacturers and Suppliers

PRODUCT OVERVIEW

Blueway Air Cooled Water Chiller is specially designed for the need of chilled water in tropical regions of the gulf areas, where the ambient temperature in summer can go above 50℃, causing the rooftop tank water reach unbearable temperatures.

This chiller system is designed to cool the roof tank water to a temperature ideal for kitchen, laundry and bathroom application. It uses a CFC free, eco-friendly refrigerant which is highly efficient and has no depletion to ozone layer. It adopts world top brand compressor, which is of high efficiency and quiet operation and is tropical for high ambient conditions.

The system consists of a refrigerant circuit and a water circuit. The refrigerant circuit is composed of a compressor, a condenser coil, a heat exchanger and a throttling device. The water circuit is composed of a water pump and the same water heat exchanger. The refrigerant absorbs heat from the water passing by the heat exchanger, by which the water temperature is reduced. The whole system is controlled by an intelligent digital controller with a user friendly display.

Air Cooled Water Chiller APPLICATION DIAGRAM

>

>

KEY COMPONENTS

Condenser Coils

The evaporator or condenser coil used is of fin and tube type. The fins are hydrophilic treated aluminum fins to resist corrosion, and the copper tubes are inner-grooved type, which increases the heat transfer in the refrigerant side.

Intelligent Control

The units are supplied with micro processor based digital controller with LCD display. The controller is programmed to provide a maximum protection to the heat pump system and accurate temperature control. The control panel is completely factory wired with all accessories and terminals included.

Water Pump

Domestic ranges are supplied with a built-in circulation pump. Wilo or Shinhoo water pump is optional.

Aluminum Fan Blade

Blueway water chillers adopt aluminum fan blade in tropical regions.

High Efficiency Compressor

With tropical resistance capacity

High efficiency and energy saving

Quiet operation due to less moving parts

Air Cooled Water Chiller KEY FEATURES

● Tropical design for a maximum working ambient temperature of 53°C

● High-efficiency compressor, tropical for high ambient conditions

● Eco-friendly CFC free refrigerant R410a, without ozone depletion

● Microprocessor-based digital controller with LCD user interface & RS485 interface

● Heat exchanger with high thermal efficiency, high working temperature & low maintenance

● Guaranteed water safety, no potential risk of contamination to potable water

● Reduce chilled water costs by two-thirds

● Heavy gauge galvanized steel cabinet with epoxy powder paint for long-lasting outdoor life span

● Full safety protections incorporated into the system:

─ high pressure and low-pressure protection

─ compressor overload and high discharge temperature protection

─ phase failure protection

─ water flow protection

─ anti-freezing protection

● The built-in circulation pump is optional

BLUEWAY STRENGTH

1.Blueway has around 30 years of rich HVAC manufacturing experience.

2.Over 1000 original R&D products, Blueway is qualified to be OEM/OBM/ODM.

3.Over 10000 engineering solutions with great success provided by Blueway.

4.Online technical service is available twenty-four hours a day without break.

5.Blueway intelligent control system with precise timing, temperature control & remote monitoring function.

FAQ

Q: What’s the MOQ?

A: Generally, one unit of sample order is acceptable, but the quotation will be a little higher than the container order.


Q: How to select a suitable model?

A: We can choose a model for you based on the actual project details & related requirements, including the brand of compressor, refrigerant, outlet water temperature, etc.


Q: What’s the delivery lead time?

A: Generally, it depends on the PMC & production plan. For standard products, it is about 35 working days. If customized order is about 45 working days.


Q: What’s the payment term?

A: Generally, we only accept T/T by the bank based on the current economic situation.


Q: How long is the warranty time?

A: Generally, one year for the whole unit, three years for the compressor.


Q: How about the freight cost?

A: Our loading port is Shunde, China. We work with many superior forwarder companies, including by air, by sea, by courier, or even door to door. Please indicate the model, quantity & destination port, then the freight could be provided for your reference.


Q: How about the after-sales service?

A: Generally, we only provide online technical support. So far, we have authorized distributors & repair centers in Europe, the Middle East, North America & South America for the overseas markets.
