Instant Hot Water Heat Pump
  • Instant Hot Water Heat PumpInstant Hot Water Heat Pump
  • Instant Hot Water Heat PumpInstant Hot Water Heat Pump
  • Instant Hot Water Heat PumpInstant Hot Water Heat Pump
  • Instant Hot Water Heat PumpInstant Hot Water Heat Pump
  • Instant Hot Water Heat PumpInstant Hot Water Heat Pump
  • Instant Hot Water Heat PumpInstant Hot Water Heat Pump

Instant Hot Water Heat Pump

Instant Hot Water Heat Pump can directly reach the desired water temperature by adopting variable flow rate control technology, featured with tube in tube water heat exchanger, water flow control valve & automatic defrosting function, saving over 2/3 energy than conventional electric water heater.

Send Inquiry

Wholesale Customized Instant Hot Water Heat Pump China Factory

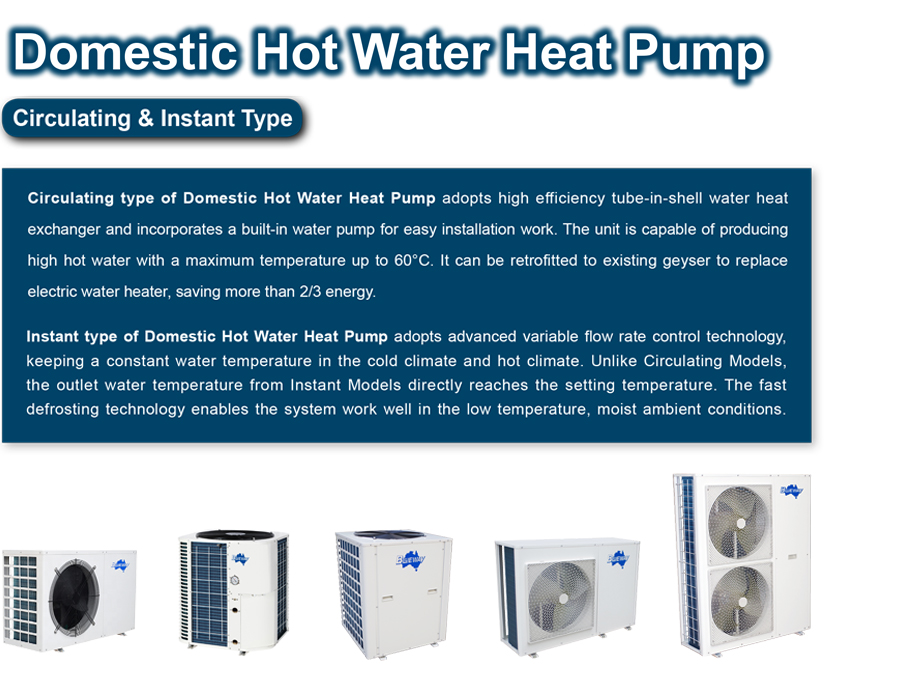

Circulating & Instant Type

Circulating type of Domestic Hot Water Heat Pump adopts high efficiency tube-in-shell water heat exchanger and incorporates a built-in water pump for easy installation work. The unit is capable of producing high hot water with a maximum temperature up to 60℃. Instant Hot Water Heat Pump can be retrofitted to existing geyser to replace electric water heater, saving more than 2/3 energy.

Instant type of Domestic Hot Water Heat Pump adopts advanced variable flow rate control technology, keeping a constant water temperature in the cold climate and hot climate. Unlike Circulating Models, the outlet water temperature from Instant Models directly reaches the setting temperature. The fast defrosting technology enables the system work well in the low temperature, moist ambient conditions.

Commercial Heating & Direct Heating type

Cycle Heating & Direct Heating Type

Instant Hot Water Heat Pump is designed to offer hot water for commercial and (or) industrial application. In order to achieve the required water temperature, large heat pump units apply unique V style evaporator design, which enlarges the heat exchange surface and increases efficiency.

Instant Hot Water Heat Pump Key Components

Water Heat Exchanger

1) High efficiency tube-in-shell heat exchanger for Circulating Heat Pumps

♦ High working pressure

The copper pipe is of 0.8~1.2 mm thickness.no welding inside. With its extraordinary pressure resistance property, the copper pipe is without any leakage under 5Mpa pressure test.

♦ The internal spiral surface of the copper tube ensures effectiveness of heat exchange and prevents from lubricant accumulation.

Working Conditions
Refrigerant Side Water Side
Max. Working Pressure 5.2Mpa 3.2Mpa
Working Temp. Range -50~150 ℃ -50~150 ℃ (above freezing point)

♦ Grooved external surface of the copper tube increases also the heat transfer area which is 3.7 times of the smooth surface.

2) High efficiency tube-in-tube heat exchanger for Instant Heating Heat Pumps

♦ Spiral tube used to increase heat transfer area for high efficiency

♦ Specially designed to provide excellent efficiency, reliability, and reduce fouling.

Compressor

♦ Famous brand rotary compressor for Domestic Heat Pumps

♦ Copeland, Danfoss or Panasonic scroll compressor for Commercial Heat Pumps

Features & Highlights

● World famous scroll compressor for reliability and superior performance

● Intelligent control: micro processor based digital controller with LCD display

● Adjustable water temperature setting: 25℃-60℃

● Water heat exchanger: tube-in- shell for circulating type, tube-in-tube for instant type

● Heavy gauge galvanized steel cabinet with epoxy powder coating for long lasting outdoor life span

● Built-in circulating water pump is optional.

BLUEWAY STRENGTH

1.Blueway has around 30 years of rich HVAC manufacturing experience.

2.Over 1000 original R&D products, Blueway is qualified to be OEM/OBM/ODM.

3.Over 10000 engineering solutions with great success provided by Blueway.

4.Online technical service is available twenty-four hours a day without break.

5.Blueway intelligent control system with precise timing, temperature control & remote monitoring function.

FAQ

Q: What’s the brand of water pump?

A: Generally, residential type adopts built-in water pump as standard. German Wilo or Chinese Shinhoo brand are optional.


Q: Any colour or product appearance option?

A: We have various kinds of appearance for the hot water heat pump, usually we adopt white for short production time.


Q: What’s the option of refrigerant?

A: R22/R407c/R417a.


Q: What’s the max. outlet water temperature?

A: 60℃for normal type, 80℃ for high temperature type. Please also refer to the “High Temperature Heat Pump” series.


Q: Hong long is the warranty time?

A: 1 year for the whole unit, 3 years for the compressor.


Q: What’s the nearest loading port?

A: Shunde, China or Nansha.China.


Q: What’s the payment term?

A: 100% advance payment for small sample order. If container order, 30% advance payment to confirm the order, balance payment should be paid 7 days before shipment.
